Shop-List

All prices are valid in Euro, without VAT, without customs duties, without freight charges, without installation, without commissioning. An order or information on delivery times is made on your written request.


Description

Price

SAFARI-RENT-LEAD

Storage capacity approx. 2.8 kWh, incl. 2 x SAFARI-BATTERY-LEAD, incl. connector for Cash-System (Prepaid for rent) , incl. 2 x Solar-Module.

 W / H / D: 800 x 800 x 600mm, 70 Kg

request

SAFARI-RENT-LION

Storage capacity approx. 4,0 kWh, incl. 2 x SAFARI-BATTERY-LION, incl. connector for Cash-System (Prepaid for rent), incl. 2 x Solar-Module.

W / H / D: 800 x 800 x 600mm, 45 Kg

request

SAFARI-ULTRA

Storage capacity approx. 3,0kWh, integrated  LifePo4-Battery,  incl. 2 x Solar-Module.

W / H / D: 600 x 257 x 189mm, 10 Kg

request

SAFARI-PICO

Storage capacity approx. 0,40 kWh, integrated  LifePo4-Battery,  incl. 1 x Solar-Modul.

W / H / D: 200 x 300 x 200mm, 2 Kg

request

SAFARI-BATTERY-LEAD

Lead-Acid-Cell with 12V/225Ah, 1,4kWh.  Especially for applications in solar systems / photovoltaic / power storage in a rugged environment.

W / H / D: 560 x 300 x 400mm, 35 Kg

request

SAFARI-BATTERY-LION

LIFEPO4-Cell with 13,2V/150Ah, 2,0kWh,  incl. BMS, Especially for applications in solar systems / photovoltaic / cascadable as power-wall.

W / H / D: 497 x 178 x 258mm, 9 Kg

request

SAFARI-SWITCH

Automatic provision of emergency power-supply
for lights and televisions with harmless low voltage.

W / H / D:200 x 200 x 100mm, 1 Kg

request

CASH-CODE

Cash-Code-System (CCS) for the worldwide sale of activation codes for rented systems through Crypto-Code.

W / H / D: 200 x 200 x 50mm, 0.5 Kg

request

CASH-COIN

System for the sale of liquid resources (water etc.) through coins or tokens.

W / H / D: 300 x 200 x 150mm, 1.5 Kg

request

CASH-COINs 100 pcs Token

Reusable coins or tokens for resale to end customers.

B / H / D: 20 x 3 mm, 0.1 kg

request

CASH-SMS

POS system for the worldwide sale of resources (electricity, water, etc.) through SMS with smartphone . (Android-APP for free)

W / H / D: 200 x 250 x 10mm, 0.5 Kg

request

CASH-CARD

POS system for the rental of systems (unlimited number) with prepaid. Incl. 100 prepaid cards.

W / H / D: 200 x 100 x 30mm, 0.5 Kg

request

CASH-CARDs

Replacement cards or chips for CASH-CARD-Station. (100pcs), branding of the customer possible.

B / H / D: 40 x 20 x 2mm, 0.05 Kg

request

SAFARI-ROAD-LIGHT / Var.1

Street lamp with solar,  1 x LED100W.

W / H / D: 1650 x 990 x 500mm, (Body), 8m (Mast)

request

SAFARI-ROAD-LIGHT / Var.2

Street lamp with solar, 1 x LED100W + 1 x LED100W.

W / H / D: 1650 x 990 x 500mm, (Body), 8m (Mast)

request

SAFARI-ROAD-LIGHT / Var.3

Street lamp with solar. 1 x LED100W + 1 x ANGEL-EYE.

W / H / D: 1650 x 990 x 500mm, (Body), 8m (Mast)

request

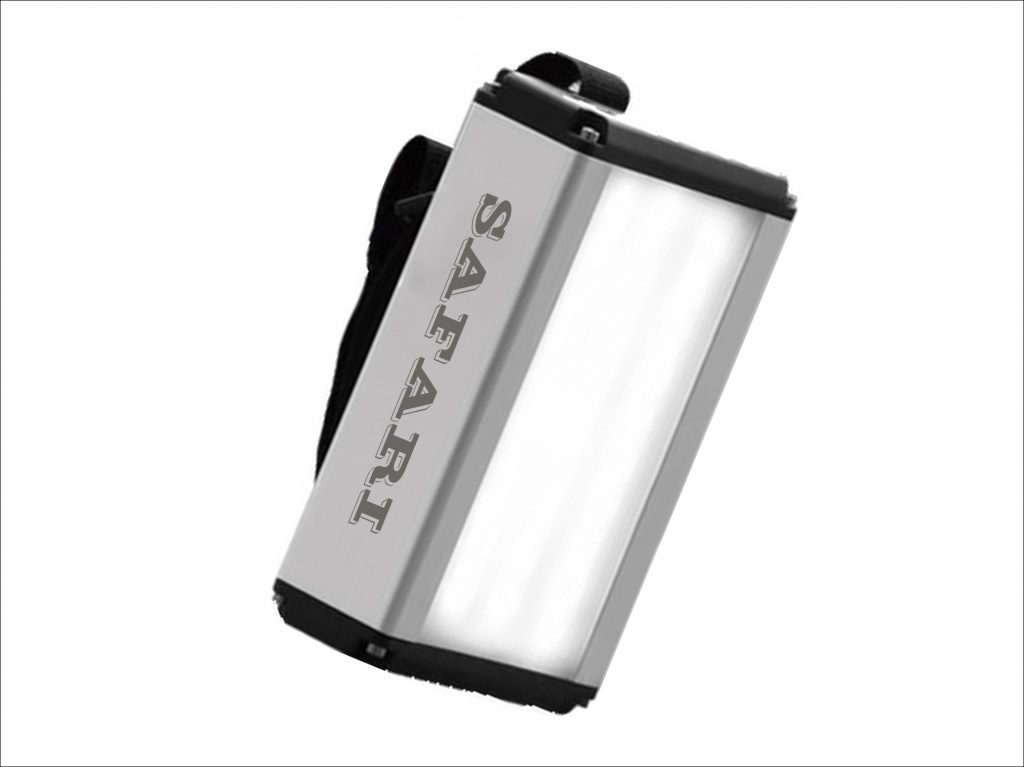

SAFARI-MULTI-LIGHT

Mobile lamp with battery for sufficient light, music box with Bluetooth pairing and integrated mobile phone charger. (Lighting duration approx. 200 hours)

W / H / D: 79 x 79 x 144mm, 0.40kg

request

SAFARI-SOLAR-LIGHT

Mobile lamp with solar cell for sufficient light and integrated mobile phone charger. (Lighting duration approx. 100 hours)

W / H / D: 127 x 80 x 33mm, 0,39 Kg

request

AFRI-POWER Kit 1

Solar-Power-Kit (complete)

05 kW.

B / H / T: — x — x — mm, — Kg

request

AFRI-POWER Kit 2

Solar-Power-Kit (complete)

10 kW.

B / H / T: — x — x — mm, — Kg

request

AFRI-POWER Kit 3

Solar-Power-Kit (complete)

15 kW.

B / H / T: — x — x — mm, — Kg

request

AFRI-WATER-NANO

1.000L (cold) water-supply-system with 9 solar modules, deep well pump, up to max. 100m depth and rental by Cash-System (Option). Without well drilling or piping.

B / H / T: 100 x 100 x 100 cm, 75 Kg

request

AFRI-WATER-CLUSTER

10.000L (cold) water-supply-system with 12 solar modules, deep well pump, up to max. 100m depth and rental by Cash-System (Option). Without well drilling or piping.

B / H / T: 220 x 250 x 600 cm, 2000 Kg

request

AFRI-WATER-MEGA

1.000.000L (cold) water-supply-system with x solar modules, deep well pump, up to max. 100m depth and rental by Cash-System (Option). Without well drilling, piping or tank/buffer.

B / H / T: 220 x 250 x 600 cm, 2000 Kg (without ext.)

request

AFRI-WATER-ECO

2.000L /h water-supply-system with x solar modules, f0r agriculture. Max Water-depth 7-8m. Borehole made by hand-driller.

B / H / T: 100 x 250 x 300 cm, 700 Kg (without ext.)

request

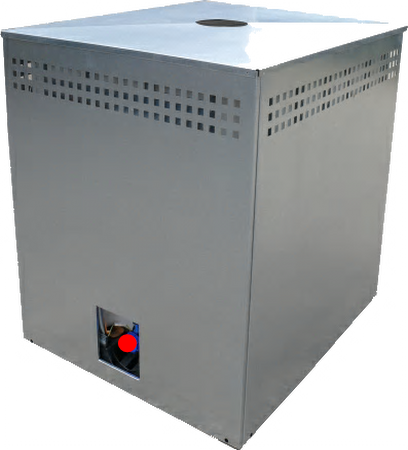

AFRI-HEATER

1.000L (hot) water-heating-system  up to 70 degrees with solar energy. Incl. Solar modules, solar tubs, controls and innovative immersion heaters. (As an extension of the AFRI-WATER)

Also suitable for retrofitting of  an existing „Afri-Water“.

B / H / T: 100 x 100 x 100 cm, 75 Kg

request

SOLAR-MODUL, High performance for high temps

Poly-Cells, 60S (FS35) (5BB), Power 275Wp, Nominal voltage 31.47V, rated current 8.74A, power-tolerance +5 Wp.

W / H / D: 1650 x 990 x 35mm, 18.5 Kg

request

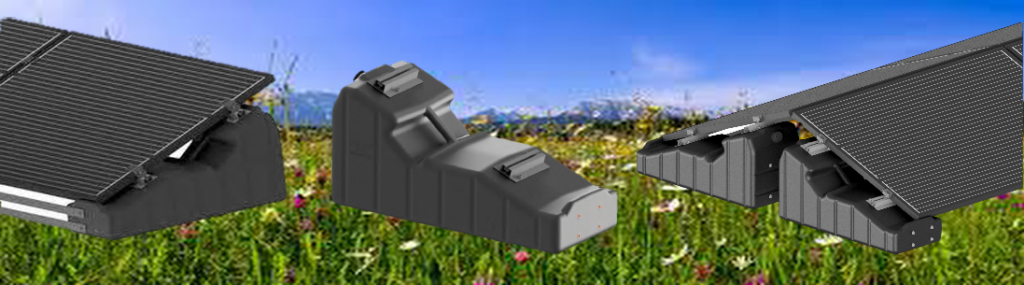

MODUL-BRAKET

Module pitch: 19 degrees, for roof slopes 0 ° -5 °
Ventilation slots on top, bottom and sides. For PV modules with aluminum frames. Ballast with sand, stones etc.

W / H / D: 430 x 1050 x 675mm, 4.5 Kg

request

SMART-HEATER V2

13.5kW heating power, without Drum-Heater DH27, without webserver.

W / H / D: 400 x 600 x 200mm, 25 Kg

request

DRUM-HEATER DH27

13.5kW heating power, stepless power, EVU / VDE compliant.

W / H / D: 100 x 800 x 200mm, 10 Kg

request

WEBSERVER for SH-V2 (Optional)

Visualization for worldwide access.

W / H / D: 30 x 100 x 50mm, 0.2 Kg

request

MEASURING CONVERTER for SH-V2 (spare part)

3-phase current transformer 100/5 A with screw terminals.

W / H / D: 40 x 40 x 20mm, 0.2 Kg

request

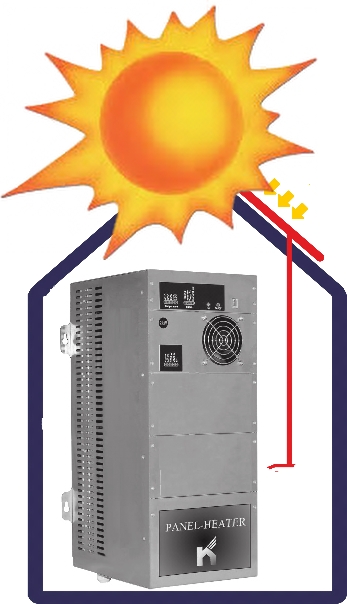

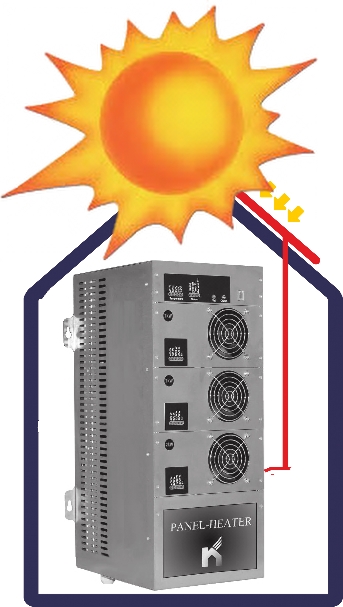

PANEL-HEATER 6kW

6kW heating power.

W / H / D: 400 x 600 x 200mm, 6 Kg

request

PANEL-HEATER 4kW

4kW heating power.

W / H / D: 400 x 600 x 200mm, 4 Kg

request

PANEL-HEATER 2kW

2kW heating power.

W / H / D: 400 x 600 x 200mm, 2 Kg

request

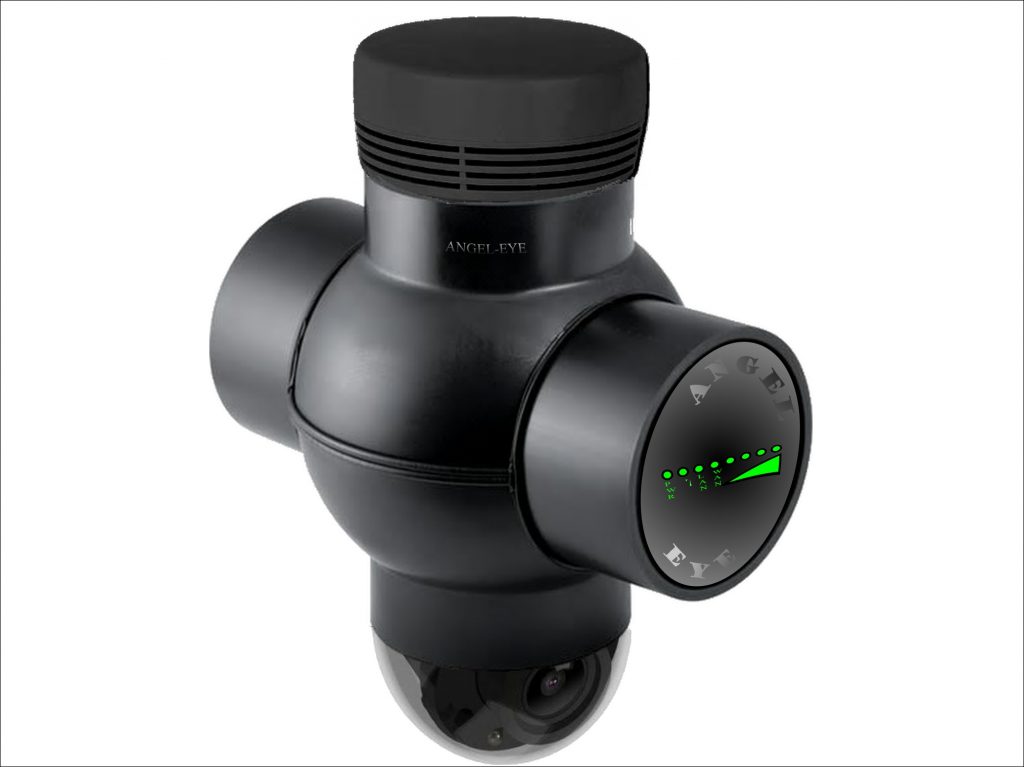

ANGEL-EYE: Video-Sender (Transmitter)

With night vision and motion control with several kilometers of signal transmission. Optimal 360 degree monitoring during day & night. Free reception via any web browser or smart phone possible.

W / H / D: 250 x 400 x 500mm, 3,5 Kg

request

ANGEL-EYE: Video-Sender (Transmitter)

With night vision and motion control with several kilometers of signal transmission. Optimal 360 degree monitoring during day & night. Free reception via any web browser or smart phone possible.

W / H : 110 x 300 mm, 2 Kg

request

ANGEL-EYE: Video-Receiver (Optional)

Optional monitor station including receiver for up to 4  ANGEL-EYE transmitters. With the availability of an Internet connection even a worldwide access is possible.

W / H / D: 200 x 100 x 100mm, 5 Kg

request

AFRI-LIGHT

Basic body for max. 6 special modules.

W / H / D: 400 x 1200 x 400mm, 50 Kg



request

AFRI-LIGHT: Special module: LED-05W

Special module for simple lighting.

W / H / D: 120 x 200 x 50mm, 0.5 Kg

request

AFRI-LIGHT: Special module: LED 10W

Special module for strong lighting.

W / H / D: 120 x 200 x 50mm, 0.5 Kg

request

AFRI-LIGHT: Special module: 30W LED

Special module for extreme lighting.

W / H / D: 120 x 200 x 50mm, 0.5 Kg

request

AFRI-LIGHT: Special module: LED floodlight

Special module for large-area lighting.

W / H / D: 120 x 200 x 50mm, 0.5 Kg

request

AFRI-LIGHT: Special module: Anti Tse-Tse

Special module for Tse-Tse-flies defense.

W / H / D: 120 x 200 x 50mm, 0.5 Kg

request

AFRI-LIGHT: Special module: Anti mosquito

Special module for mosquito-flying defense.

W / H / D: 120 x 200 x 50mm, 0.5 Kg

request

AFRI-LIGHT: Special Module: GSM Booster

Special module for mobile radio amplifier

W / H / D: 120 x 200 x 50mm, 0.5 Kg

request

AFRI-LIGHT: Special module: USB charging sockets

Special module for a total of 8 USB charging sockets

W / H / D: 120 x 200 x 50mm, 0.5 Kg

request

AFRI-LIGHT: Special module: alarm siren

Special module for alarm with remote control / cable

W / H / D: 120 x 200 x 50mm, 0.5 Kg

request

AFRI-LIGHT: Special module: Fire / smoke detector

Special module for fire alarm

W / H / D: 120 x 200 x 50mm, 0.5 Kg

request

AFRI-LIGHT: Special module: emergency call

Special module for emergency call with GSM signal

W / H / D: 120 x 200 x 50mm, 0.5 Kg

request

AFRI-LIGHT: Special module: Fencing

Special module for pasture fence

W / H / D: 120 x 200 x 50mm, 0.5 Kg

request

AFRI-LIGHT: Special module: traffic light

Special module for traffic lights in the network. (Via radio)

W / H / D: 500 x 200 x 200mm, 2 Kg

request

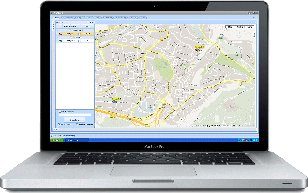

AFRI-LIGHT: Traffic lights center

Stationary control room / control center for up to 1000 wireless traffic lights. (City-Mode also by remote)

W / H / D: 500 x 500 x 500mm, 9,5 Kg

request
